ESD PEEK

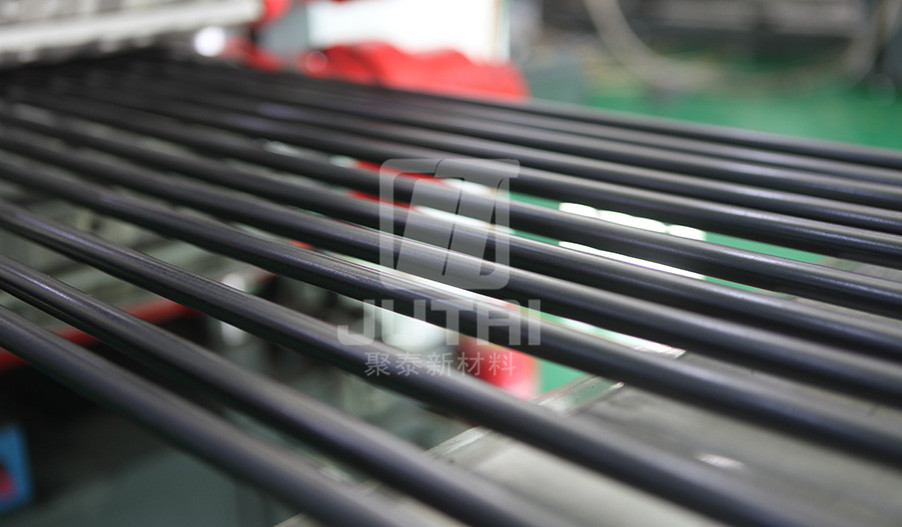

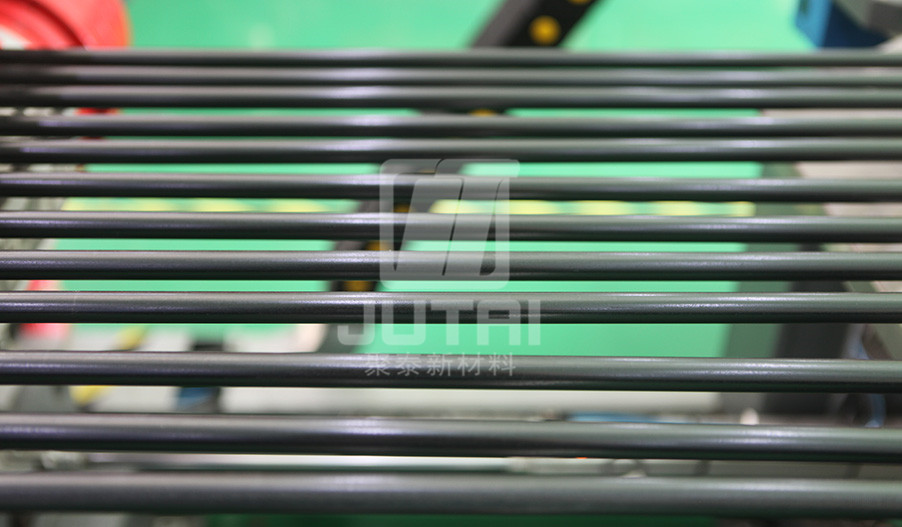

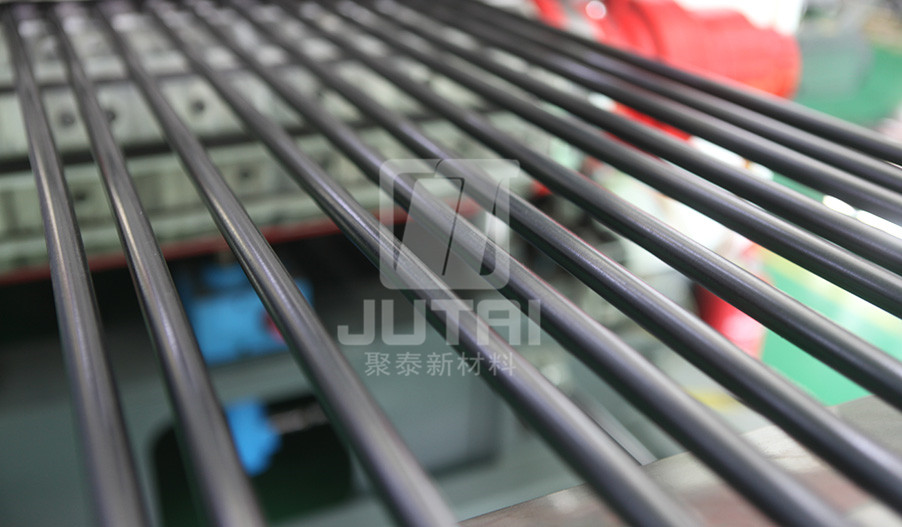

JUTAIPEEK®ESD6-B is a type of Polymeric Profiles made from electrostatic-dissipative Polyetherether Ketone (PEEK). It is a kind of polymeric materials with outstanding mechanical properties, heat-resistance, resistance to chemicals, wear resistance and antistatic property.
This type of products can be applied as auxiliary material in semiconductor products production, components and parts of semiconductor products, and industrial explosion-proof. It mainly is used in handling high-sensitivity components and can remarkably minimize the failure of the electronics components.
Product Features
JUTAIPEEK®ESD6-B type electrostatic-dissipative PEEK profiles:
● High stiffness and mechanical strength.
● Good sliding frictional property.
● High dimensional stability.
● Outstanding antistatic property and the surface resistivity =106 -109 Ω/sq.
● High uniformity of surface resistivity distribution.
● Black color, and uniform color.
● No small molecule substance releasing and no solid powder outgassing, and very clean.
Application Fields
JUTAIPEEK®ESD6-B type electrostatic-dissipative PEEK profiles can be applied:
—— Mechanical Engineering Industry；
—— Material Handling Industry；
—— Electronic Industry；
—— Chemical Industry.
Instructions for Use
Machined by Lathes or Milling Machine.
Remove surface heat-treatment aged layers and the thickness of removal layer is 0.5-2mm.
Product Storage Instructions
Placed away from light, avoiding humid, and away from oily substance.
Packed with polymeric film when not use.
Product Technical Data
The performance of JUTAIPEEK®ESD6-B series products is as follows:

Performance Test Method Unit Standard
Color Eye / Black
Density ISO 1183-1 g/cm³ 1.37
Tensile Strength ISO 527-2 MPa ≥105
Tensile Modulus ISO 527-2 GPa ≥5.5
Elongation At Break ISO 527-2 % ≥3
Charpy Impact Strength ISO 179 KJ/m² ≥4.0
Flexural Strength ISO 178 MPa ≥150
Flexural Modulus ISO 178 GPa ≥4.1
Rockwell Hardness ISO 2039-2 HRM ≥100
Melt Temperature ISO 11357-3 ℃ ≥334
Thermal Conductivity ISO 8302 W/ (m•K) ≤0.5
Coefficient of Linear Thermal Expansion 20-100℃ ISO 11359-2 10-6/K ≤50
Long Service Temperature UL 746B ℃ 240
Heat Deflection Temperature ISO 75-2 ℃ ≥170
Water Absorption（ 24h） ISO 62 % ≤0.11
Flame Retardancy UL 94 / V-0
Volume Resistivity IEC61340-2-3 Ω•cm 107-1010
Surface Resistivity IEC61340-2-3 Ω/sq 106-109

Notes: Antistatic property is characterized by surface resistivity and the test methods are according to IEC61312-3-2, ANSI/S.T.M11.11, and IEC61340-2-3. The preferred method is from IEC61340-2-3 and the testing electrode is Concentric Ring Electrode.
